Fuses (type A)

1. HEAD (RH) 15 A: Right-hand headlight, Front fog lights.
2. HEAD (LH) 15 A: Left-hand headlight, Front fog lights.
3. EFI 15 A: Electronic Fuel Injection system.
4. DOME 20 A: Interior lights, door courtesy lights, luggage compartment light, step light, ignition switch light, clock, open door warning light, radio, casstte tape player, poswer antenna, air conditioning system, electronically controlled automatic transmission system, gauges and meters.
5. HAZ-HORN 15 A: Emergency flashers, horns.
6. RTR 30 A: Retractable headlight system.
7. HEAD HI (RH) 15 A *³: Right-hand headlight (high beam)
8. HEAD HI (LH) 15 A *³: Left-hand headlight (high beam)
9. HEAD LO (RH) 15 A *³: Right-hand headlight (low beam)
10. HEAD LO (LH) 15 A *³: Left-hand headlight (low beam)
11. TAIL 15 A: Tail lights, parking lights, front fog lights, license plate lights, instrument panel lights, glovebox light.
12. IGN 7.5 A: Charging system, discharge warning light, electronic fuel injection system.
13. STOP 20 A *² (15 A *¹):Stoplight, cruise control system cancel device, anti-lock brake system.
14. MIR-HTR 10 A: Outside rear viewmirror defogger.
15. TURN 7.5 A: Turn signal lights, emergency flashers.
16. ECU-IG 15 A: Cruise control system, electronically controlled automatic transmission system, anti-lock brake system, power steering system, retractable headlight system, power door lock system, power antenna.
17. GAUGE 7.5 A: Gauges and meters, warning ligyhts and buzzer (except discharge and open door warning lights), econodrive monitor, reversing lights, air conditioning system, electronically controlled automatic transmission system, rear window defogger, power windows, power door lock system, power antenna.
18. RADIO 7.5 A: Radio, cassette tape player, power rear view mirrors.
19. WIPER 20 A: Windshield wipers and washer, rear window wiper and washer, headlight cleaner.
20. CIG 15 A: Cigarette lighter, digital clock display, power antenna, air conditioning system.
21. ENGINE 15 A: Charging system.
22. FOG 20 A: Front fog lights, rear fog lights, headlight beam level control.
23. ECU-B 5 A*¹ (10 A*²): Anti-lock brake system.
24. TAIL (RH) 10 A: Right-hand tail light, instrument panel lights, glovebox light.
25. TAIL (LH) 10 A: Left-hand tail light, left-hand license plate light.
26. SEAT HTR 15 A: Seat heaters
27. 10 A: Air conditioning system.

Fuses (type B)

28. ALT 100 A: Retractable headlight system, air conditioning system, charging system, "CDS", "FOG", "ECU-B"
29. ABS 60 A: Anti-lock brake system.
30. CDS 40 A: Condenser cooling fans.
31. AM1 40 A: Charging system, headlight cleaner, power windows, power lumbar and side support control system, "CIG", "RADIO", "GAUGE", "WIPER", "TURN", "ECU-IG", "SEAT HTR"
32. AM2 30A:Electric fuel injection system, ignition system.

Circuit breakers

1. 30 A: Rear window defogger.
2. 30 A: Power windows, power lumbar and side support control system.
3. 40 A: Air conditioning system.

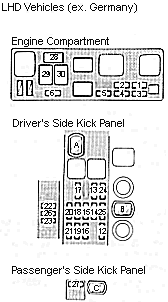

*¹: Left-hand drive vehicles

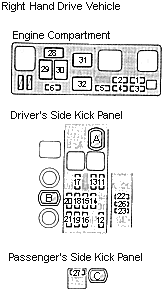

*²: Right-hand drive vehicles

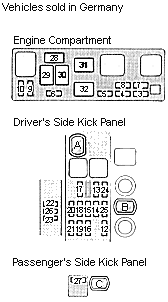

*³: Vehicles sold in Germany
